Параметры LCR

СВОДНАЯ ТАБЛИЦА РЕЗУЛЬТАТОВ

LCR ИЗМЕРЕНИЙ КАБЕЛЕЙ

Сопротивление Rs / Ёмкость Cp / Индуктивность Ls

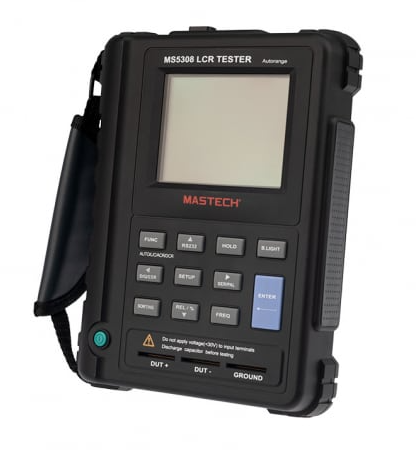

Прибор: Mastech MS5305 LCR TESTER

Daxx модель	мм.кв. металл диэлек	длина m	Сопр. Rs @1kHz Ω/m	Сопр. Rs @10kHz Ω/m	Сопр. Rs @100kHz Ω/m	Ёмкость Cp @1kHz pF/m	Ёмкость Cp @10kHz pF/m	Ёмкость Cp @100kHz pF/m	Индук. Ls @1kHz μH/m	Индук. Ls @10kHz μH/m	Индук. Ls @100kHz μH/m
Межблочные, балансные, микрофонные кабели (витые пары)
R109	0.75 SPOCC 3PE foam	5.1	0.024	0.024	0.049	56.47	55.17	55.19	0.803	0.798	0.668
R101	0.75 OCC 3PE foam	1.0	0.027	0.027	0.041	49.300	43.890	44.940	1.100	1.080	0.964
		1.5	0.020	0.020	0.041	51.600	45.800	46.000	1.000	0.9533	0.8426
		10.0	0.023	0.025	0.042	53.070	50.200	49.180	0.740	0.741	0.660
R106	0.50 OCC 3PE foam	1.0	0.029	0.029	0.041	88.200	82.970	83.310	0.800	0.860	0.821
R106	0.50 OCC 3PE foam	9.55	0.033	0.033	0.055	92.880	91.204	91.393	0.618	0.622	0.571
R100	0.264 Silver Teflon	1.4	0.042	0.042	0.060	70.070	66.900	67.972	0.928	0.907	0.792
R99	SPC PE	1.6	0.035	0.035	0.0462	53.400	48.07	1.045	1.031	1.045	0.994
R89	0.75 SPC PE	1.0	0.021	0.020	0.032	66.300	60.320	60.310	1.000	1.020	0.990
R89	0.75 SPC PE	7.0	0.023	0.023	0.040	68.571	66.986	65.700	0.743	0.740	0.702
R86	0.75 OFC PE	1.0	0.024	0.024	0.035	59.500	53.610	53.730	1.000	1.100	1.073
R86	0.75 OFC PE	8.25	0.027	0.027	0.044	62.990	61.646	60.605	0.714	0.714	0.683
R69	0,5 SPC PE	1.0	0.032	0.031	0.039	70.800	64.960	65.000	1.000	0.940	0.930
R69	0,5 SPC PE	10.0
R66	0.5 OFC PE	1.0
R66	0.5 OFC PE	7.0
R60	0.35 OFC PE foam	1.0	0.048	0.047	0.050	59.400	53.660	54.110	0.800	0.890	0.884
R60	0.35 OFC PE foam	5.0	0.049	0.049	0.059	56.860	55.240	54.510	0.720	0.718	0.697
R52	0.22 OFC PE	5.0
J63	0.14 OFC PE foam	1.0	0.126	0.126	0.125	58.200	52.110	53.020	0.900	1.030	1.034
J93	0.17 SPC PE foam	1.0	0.130	0.129	0.0128	57.900	52.390	53.490	1.100	1.070	1.074

Коаксиальные кабели
V99	0,5 SPC PE foam	1.0	0.035	0.033	0.034	57.600	52.280	53.440	0.900	0.900	0.900
R93	SPC PE foam	1.0	0.080	0.080	0.078	62.900	57.720	58.870	0.700	0.800	0.801
V55	0.33 OFC PE foam	1.0	0.057	0.056	0.053	67.900	62.730	63.850	0.600	0.670	0.681
V55	0.33 OFC PE foam	8.0
V51	0.65mm OFC PE solid	3.6	0.051	0.0511	0.057	73.612	72.305	72.501	0.527	0.522	0.519
V61	0.17 OFC PE	5.3	0.149	0.148	0.149	54.528	53.773	53.962	0.490	0.488	0.486
A20	1.14mm OFC PE foam	1.0	0.015	0.014	0.016	54.700	49.400	54.000	0.600	0.710	0.702
R10	CCS PE	1.4	1.428	1.440	1.520	71.860	68.065	67.085	1.857	1.895	1.885
S02	3.1 OFC PVC	6.0	0.005	0.005	0.013	844.00	771.330	684.830	0.216	0.205	0.190
Акустические кабели сечением 5.2 - 4.0 мм.кв. (10 - 11AWG)
S20	5.2 CCA PVC Std	28.6	0.005	0.006	0.017	92.343	82.203	71.993	0.594	0.588	0.552
S30
S50	5.2 OFC PVC flat	3.85	0.004	0.004	0.009	39.870	36.418	32.922	0.805	0.813	0.795
S90	5.2 SPC+OFC PVC Std	3.0	0.003	0.003	0.010	50.500	45.133	40.767	0.867	0.897	0.818
S31	4.0 OFC PVC Flex	10.0	0.0042	0.005	0.0220	83.620	76.760	88.400	0.680	0.684	0.635
Акустические кабели сечением 3.3 мм.кв. (12AWG)
S22	3.3 CCA PVC Std	6.8	0.010	0.010	0.016	67.352	58.632	51.382	0.735	0.738	0.717
S32	3.3 OFC PVC Flex	5.5	0.005	0.005	0.013	82.000	72.909	63.145	0.709	0.715	0.669
S32	3.3 OFC PVS Std	5.0	0.005	0.005	0.012	71.060	61.300	53.880	0.720	0.710	0.671
S42	3.3 TOFC PVC Std	5.0	0.005	0.005	0.012	72.520	64.540	57.060	0.720	0.712	0.679
S52	3.3 OFC PVC Flat	4.8	0.006	0.006	0.012	52.063	46.667	42.854	0.708	0.700	0.681
S62	3.3 TOFC PVC flat	3.07	0.006	0.006	0.009	38.111	33.860	30.619	0.879	0.883	0.866
S82	3.3 OFC PVC twist	3.0 (T)	0.005	0.005	0.008	128.90	113.33	96.967	0.733	0.717	0.694
S82	3.3 OFC PVC twist	10.0
S182	3.3 OCC PVC twist	3.0 (T)	0.005	0.005	0.008	141.23	123.833	105.267	0.667	0.653	0.630
S182	3.3 OCC PVC twist	4.75	0.0048	0.0050	0.015	145.05	126.310	107.830	0.589	0.595	0.560
S192	3.3 SPOCC PVC twist	2.0 (T)	0.005	0.0045	0.012	120.40	104.650	90.615	0.751	0.762	0.714
S192	3.3 SPOCC PVC twist	6.0	0.005
S702	3.3 OFC PVC twist	10.0	0.005	0.005	0.016	122.95	112.31	100.82	0.650	0.640	0.602
S722	ожидаем
Акустические кабели сечением 2.5 мм.кв. (13 AWG)
S33	2.5 OFC PVC Flex	19.6	0.007	0.008	0.019	74.541	68.163	60.051	0.673	0.677	0.643
S713	2.5 OFC PVC FRNC	11.1	0.007	0.007	0.016	51.667	48.919	46.584	0.729	0.720	0.682
S703	2.5 OFC PVC twist	30.0	0.007	0.007	0.021	144.400	131.66	117.70	0.633	0.654	0.623
S723	2.5 OFC PVC twist	5.5	0.006	0.006	0.016	155.509	143.091	129.800	0.564	0.564	0.529
S753	2.5 OFC PVC twist	3.1	0.006	0.006	0.014	131.548	118.355	107.323	0.677	0.655	0.624
S93	2.5 SPC+OFC PVC Std	10.0	0.007	0.007	0.017	45.700	41.140	36.820	0.910	0.905	0.842
Акустические кабели сечением 2.1 мм.кв. (14AWG)
S34	2.1 OFC PVC Std	11.8	0.008	0.008	0.017	61.864	56.068	50.458	0.703	0.707	0.681
S34	2.1 OFC PVC Flex	5.0	0.008	0.008	0.016	81.340	72.820	63.640	0.700	0.706	0.680
S54	2.1 OFC PVC flat	3.6	0.008	0.007	0.010	40.361	36.944	33.844	0.806	0.808	0.797
S64	2.1 TOFC PVC flat	8.48	0.008	0.008	0.013	37.347	33.738	30.366	0.825	0.828	0.818
S714	2.1 OFC PVC FRNC	3.5	0.008	0.008	0.015	51.114	47.571	45.514	0.725	0.727	0.687
S914	2.1 SPC PVC	8.77	0.008	0.008	0.016	48.575	44.048	39.008	0.878	0.873	0.845
S84	2.1 OFC PVC twist	6.0	0.009	0.009	0.017	144.700	128.217	109.250	0.617	0.613	0.592
S184	2.1 OCC PVC twist	9.82	0.008	0.008	0.015	146.517	130.316	111.079	0.580	0.571	0.550
Акустические кабели сечением 1.5 мм.кв. (15AWG)
S35	1.5 OFC PVC flex	9.0	0.007	0.007	0.012	75.334	67.010	58.066	0.733	0.732	0.706
S715	1.5 OFC PVC FRNC	29.0	0.012	0.013	0.021	51.000	48.677	46.344	0.722	0.727	0.694
S725	1.5 OFC PVC twist	12.0	0.012	0.012	0.020	134.61	122.01	108.57	0.617	0.618	0.720
Акустические кабели сечением 1.3 мм.кв. (16AWG)
S36	1.3 OFC PVC Flex	4.0	0.013	0.013	0.020	65.000	57.750	50.500	0.825	0.843	0.828
S56	1.3 OFC PVC flat	6.0	0.015	0.015	0.015	36.533	32.500	29.615	0.867	0.865	0.862
